A New Generation of Electro-Hydraulic Compression Tools:
ASK Power Blue Expert2, BE2

Faster Compression and Longer Battery Life



Saves Time: Double integrated speed means more cycles per charge.
Saves Money: Uses a standard Makita Lithium-ion 18 V battery.
Assures Quality: Integrated software for diagnosis and analysis of data.
Reduces Fatigue: Lightest tools in class.




Blue Expert2: This new line of electro-hydraulic compression tools offer a full range of features to ensure a perfect compression crimp.

Output force: 120 kN
Stroke: 1" (25 mm)
Autonomy: 110 to 220 crimping operations with battery 4.0 Ah
Cycle time: 5 to 8s depending on the section.
Dimensions: 15.16 x 12.41 x 2.84 in (385 x 315 x 72 mm)
Weight: 15 lbs (including the battery)

Type of tubular lugs and butt connectors

AWG/MCM

Sections mm2
Copper lugs & butt connectors CT/CU series 10 - 750 MCM 6 - 400
Copper lugs & butt connectors DE series 10 - 600 MCM 6 - 300
Copper lugs & butt connectors YCA series 8 - 600 MCM 10 - 300
"C" tap-off connectors '10 - 350 MCM 6 - 185/95
Aluminum-copper lugs
(hexagonal compression type)		 2 - 600 MCM 35 - 300

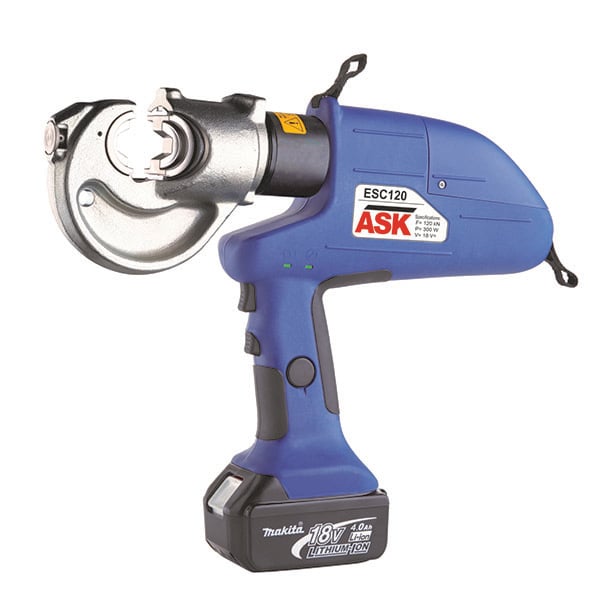

Kit Composition - ESC120K1BLCM

Item Code: 7519427

Crimping tool .................................. PN : ESC120
2 batteries 18 V / 4 Ah .................... PN : BL1840
Charger 110 V................................. PN : CLM1890HC
Metallic carry case........................... PN : CMESC120
(space for 22 sets C12)

Features




180° swiveling head.

The head is easy to open and the dies simple to change.




Comfortable and accurate handling thanks to the shape and the materials used in the handle.




Optimum ergonomics thanks to the balance of the tool. Can be used by right or left-handed people.




The USB interface enables the tool usage data to be downloaded thanks to the software CT Diag.



With this software, it is possible to configure the tool, record the crimping data and analyze the cycles already done.




Lithium-ion 18 V battery with increased life expectancy and without any memory effect.




Service indicator lights inform about the battery charge level and working order of the tool.

     Accessories

Metalic Carry Case


 PN: CMESD50 / CMESDC60 /  CMESC120 / CMESU137

 Ideal for transport and storage.

 Adapted to each model.



Adapters for ESU 137


Dies


For hexagonal dies, punches and other compression



Battery


Li-Ion technology without memory effect


Fast Charger


Charger with display that identifies the state of the battery and the conditions of the load.

New Features

Lightest tool in the industry.

Most crimps per battery charge in the industry.

Uses standard Makita Lithium-ion 18 V battery.

Double integrated speed means more cycles per charge.

2-stage hydraulic pump with pilot-operated valve increases battery charge duration by 20% to 40%.

2-stage hydraulic pump with pilot-operated valve increases crimp speed by 20% to 40%.

User defined programming allows;

Automatic or manual return stroke;
Automatic stop and return at compression cycle completion;
Audible return sound signal.

Software allows configuration of tool settings.

Software provides crimping data for performance analysis






Visit www.ASK-Power.com for compatible compression terminals
